Product details:
Description

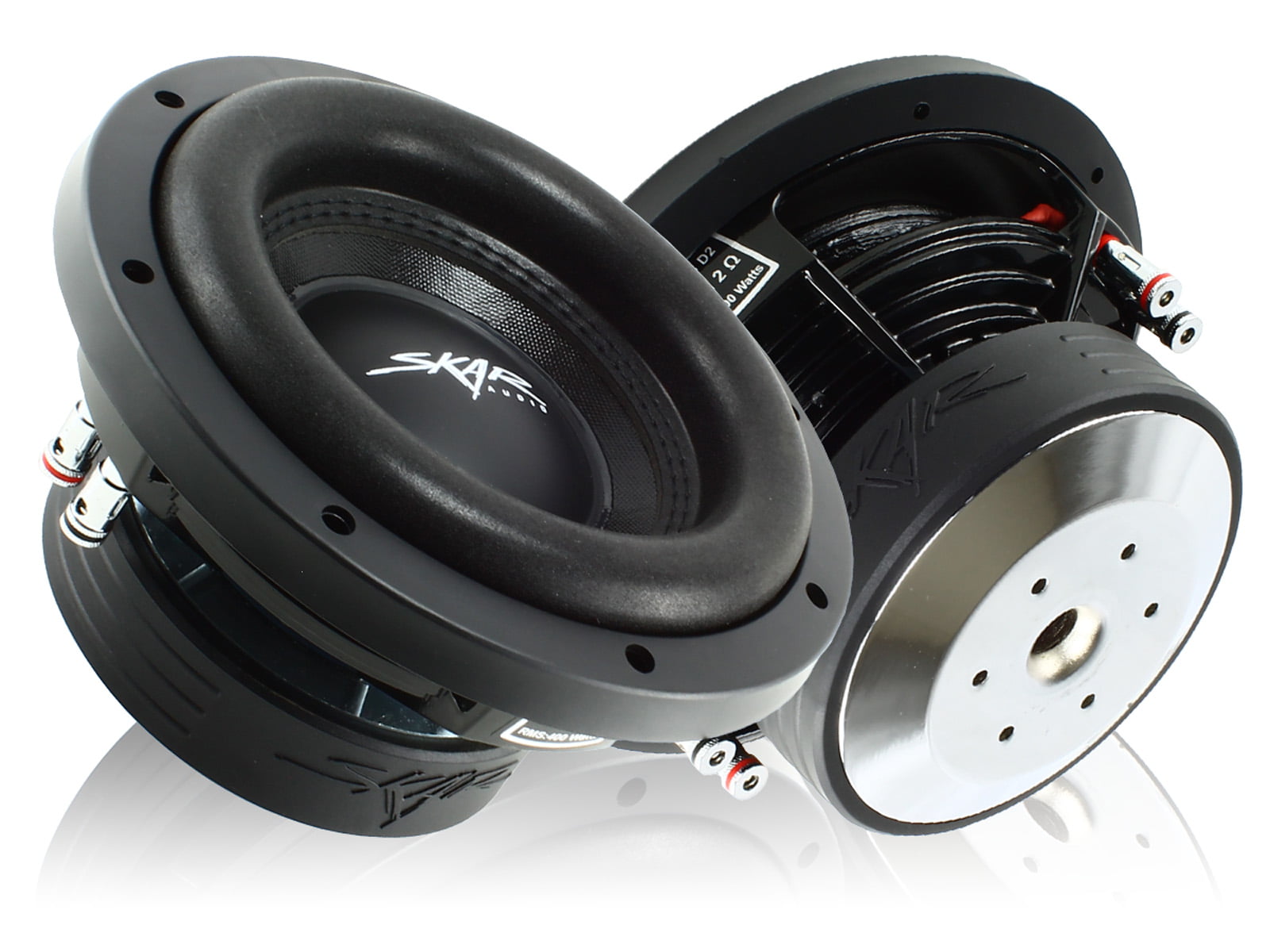

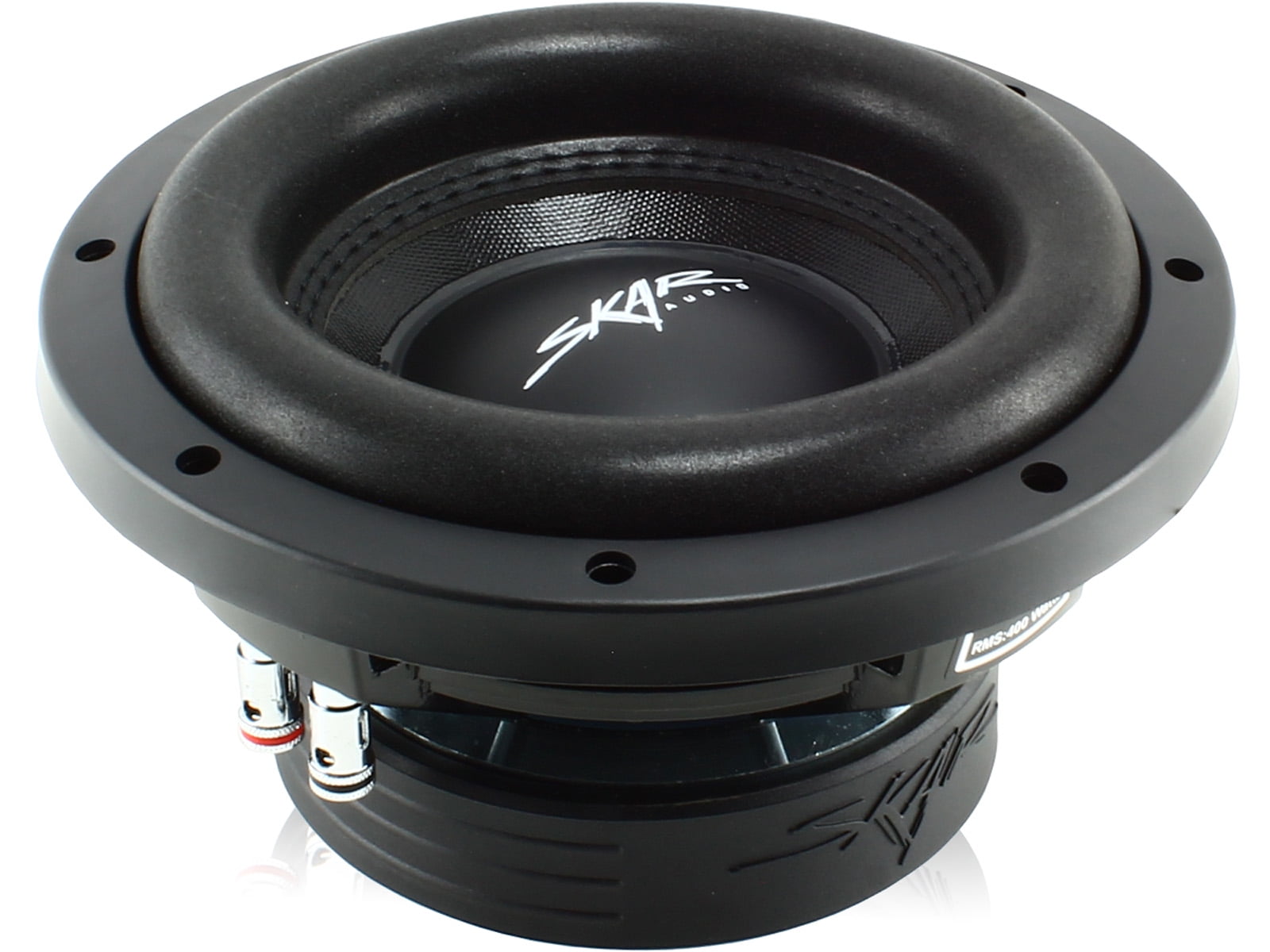

The Skar Audio VD-8 D2 is an 8-inch, dual 2-ohm, shallow mount car subwoofer. This woofer was engineered to sound great and handle ample amounts of power all while maintaining a shallow foot print, which allows them to be very versatile in use. This driver utilizes a high temperature 2-inch voice coil, which in conjunction with it's powerful, yet low profile single stack ferrite magnet, allow it to perform with dominance. The VD series make for a great under seat subwoofer or for use in applications where mounting depth is limited. 8-inch car subwoofer. Dual 2-ohm voice coil. Max power: 600 Watts. RMS Power: 400 Watts. Fs: 70.0 Hz, Spl: 82.0 dB. Mounting Depth: 3.94"
Specifications
- Skar Audio VD-8 D2 - 8" Shallow Mount Car Subwoofer
- Dual 2 Ohm Voice Coil Configuration
- Peak Power: 600 Watts
- RMS Power: 400 Watts
- Pressed Paper Cone
- High Roll Foam Surround
- 2" High Temperature Copper Voice Coil
- Frequency Response: 55 - 500 Hz
- Sensitivity: 83.2 dB
- Fs: 52.0 Hz
- Re: 3.9 Ohms
- Qms: 4.24
- Qes: 0.56
- Qts: 0.49
- Nref: 0.10 %
- Cms: 0.04 mm/N
- Bl: 11.7 n/a
- Vas: 8.2 L
- Xmax: 10.25 mm
Enclosure Specifications
- Sealed Volume: 0.35 ft^3
- Ported Volume: 0.75 ft^3
- Mounting Depth: 3.94"
- Cut-Out Diameter: 7.3"
- Magnet Diameter: 5.51"
- Subwoofer Displacement: 0.07 ft^3
Features:Peak Power : 600 Watts, 2" High Temperature Copper Voice Coil, Dual 2 Ohm Voice Coil Configuration, High Roll Foam Surround, RMS Power : 400 Watts
Brand:Skar Audio
Manufacturer Part Number:VD-8 D2
Manufacturer:Skar Audio
Assembled Product Dimensions (L x W x H):10.00 x 10.00 x 7.00 Inches
